50m3 Gold Stone Sand Wet Dry Ball Grinding Mill Machine

Name: 50m3 Gold Stone Sand Wet Dry Ball Grinding Mill Machine
Brand: Zhongke
Price: 9000 USD

China 50m3 Gold Stone Sand Wet Dry Ball Grinding Mill Machine wholesale

Brand Name : Zhongke

Certification : CE,ISO9001,ISO14001

Place of Origin : Henan, China (Mainland)

MOQ : 1 set

Price : USD 9000/ set

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 900 sets per month

Delivery Time : 15 days

Packaging Details : Nude, steel or wooden case

Name : Energy Saving Rod Mill

Efficiency Volume (m3) : 5.0-50

Balls Weight (t) : 2.3-94

Control System : PLC computer

Rotary Speed (r/min) : 29, 23, 19, 14.5, etc.

Power (kw) : 22, 75, 250, 1000, etc.

Capacity (t/h) : 6, 10, 13, 20, 84, 340, etc.

Weight (t) : 6.2-192

Contact Now

Gold Stone Sand Wet / Dry Ball Grinding Mill Machine Manufacturer
Energy Saving Rod Mill
Ball mill——Products Description
Ball mill is the key milling equipment after materials has been crushed. It is widely used in Cement, silicate, new construction material, refractory material, ferrous metal and nonferrous Metal as well as ceramics. It is widely applied to grind ores in dry or wet process. Working principle: The ball mill is horizontal cylindrical rotation device, driven by brim gearwheel.Performance Of Ball Mill

1. The new ball milling machine can save power of motor of 30-40%, lubricating oil 70%, cooling water 90%, and the comprehensive saved energy is over 40%.
2. The headstock of the ball milling machine does not need to change, which saves much maintenance costs and both time and labor.
3. The headstock adopts grease lubrication which is convenient, clean and with no heavy metal pollution.

Technical Parameter Of Ball Mill

Model	Cylinder Size (mm) Dia*Length	Efficiency Volume (m3)	Balls Weight (t)	Rotary Speed (r/min)	Power (kw)	Discharge Size (mm)	Capacity (t/h)	Weight (t)
MB1908	Φ900*1800		2.3	29	22	2.5-0.2	6-1.6	6.2
MB0924	Φ900*2400		3.1	29	30	2.5-0.2	10-2.9	6.6
MB1224	Φ1200*2400		6.5	27	55	2.5-0.2	13-5	13.5
MB1530	Φ1500*3000	5.0	8	23	75	2.5-0.2	12-5.5	16.71
MB1830	Φ1800*3000	6.5	17	22.8	132	2.5-0.2	20-9.5	29.8
MB2122	Φ2100*2200	6.7	18	20.9	160	2.5-0.2	27-12	42.5
MB2130	Φ2100*3000	9.2	25	20.9	160	2.5-0.2	30-13	43.9
MB2136	Φ2100*3600	11.0	28	20.9	200	2.5-0.2	35-14.8	49.4
MBZ2136	Φ2100*3600	11.0	32.5	20.9	210	-5.0	61.5-43	49.9
MB2140	Φ2100*4000	12.2	31	20.9	220	2.5-0.2	38-17	50.3
MB2145	Φ2100*4500	13.8	35	20.9	250	2.5-0.2	43-19	51.8
MB2430	Φ2400*3000	12.2	31	19	250	2.5-0.2	47-22	56.0
MBZ2430	Φ2400*3000	12.2	31	19	250	-5.0	73-52	58.3
MB2436	Φ2400*3600	14.6	37	19	280	2.5-0.2	55-26	61
MBZ2436	Φ2400*3600	14.6	37	19	280	-5.0	84-60	62.4
MB2730	Φ2700*3000	15.3	35	17.5	315	5-0.8	125-37.5	75.6
MB2736	Φ2700*3600	18.4	42	17.5	355	5-0.8	150-45	81.8
MB2740	Φ2700*4000	20.5	47	17.5	400	5-0.8	165-50	84.3
MB3040	Φ3000*4000	25.9	50	16.2	500	5-0.8	206-62	130
MB3245	Φ3200*4500	33	56	15.5	630	5-0.8	228-70	138
MB3248	Φ3200*4800	34	60	15.5	710	5-0.8	240-74	142
MB3645	Φ3600*4500	40.8	78	14.5	800	5-0.8	270-83	168
Mb3654	Φ3600*5400	50	94	14.5	1000	5-0.8	340-103	192

50m3 Gold Stone Sand Wet Dry Ball Grinding Mill Machine

Product Tags:

50m3 Grinding Mill Machine

340t/h Grinding Mill Machine

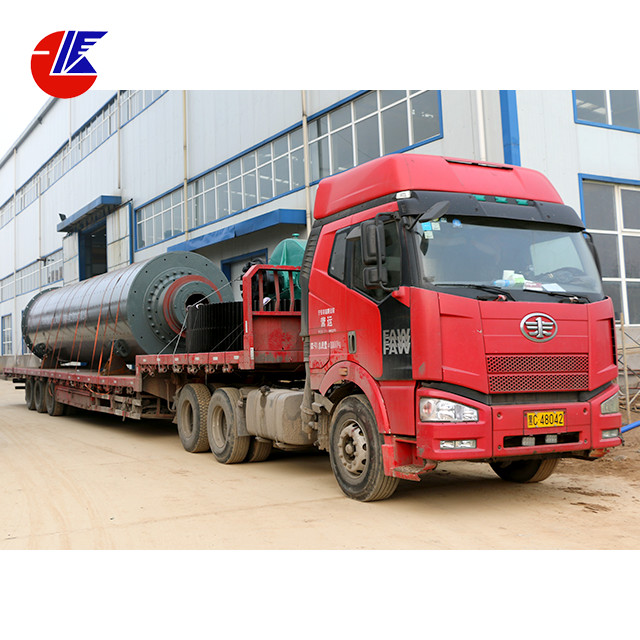

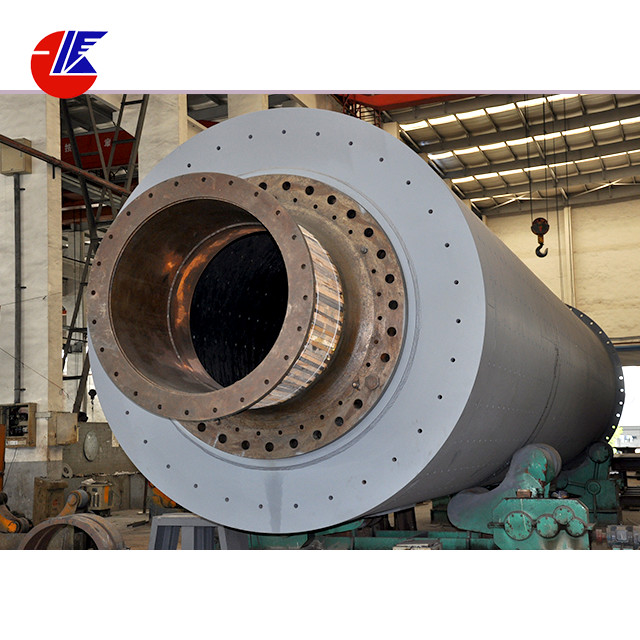

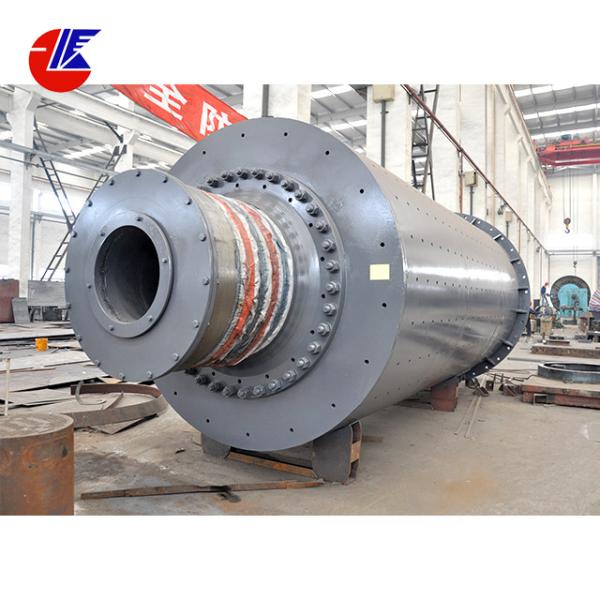

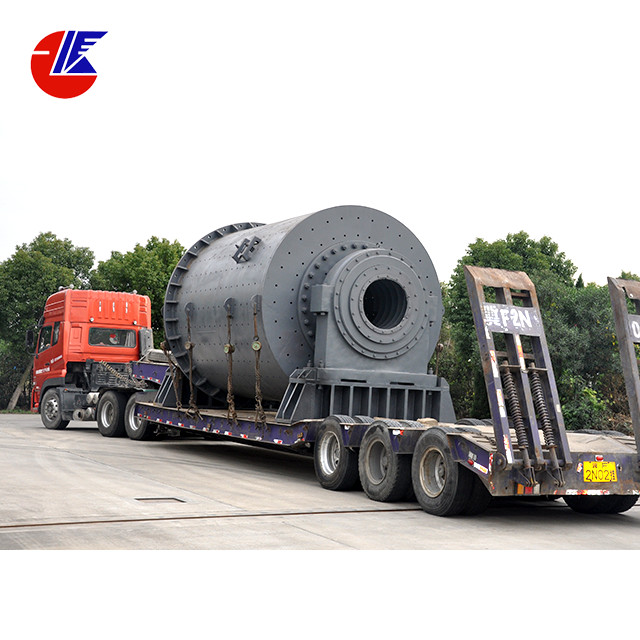

50m3 Gold Stone Sand Wet Dry Ball Grinding Mill Machine Images
